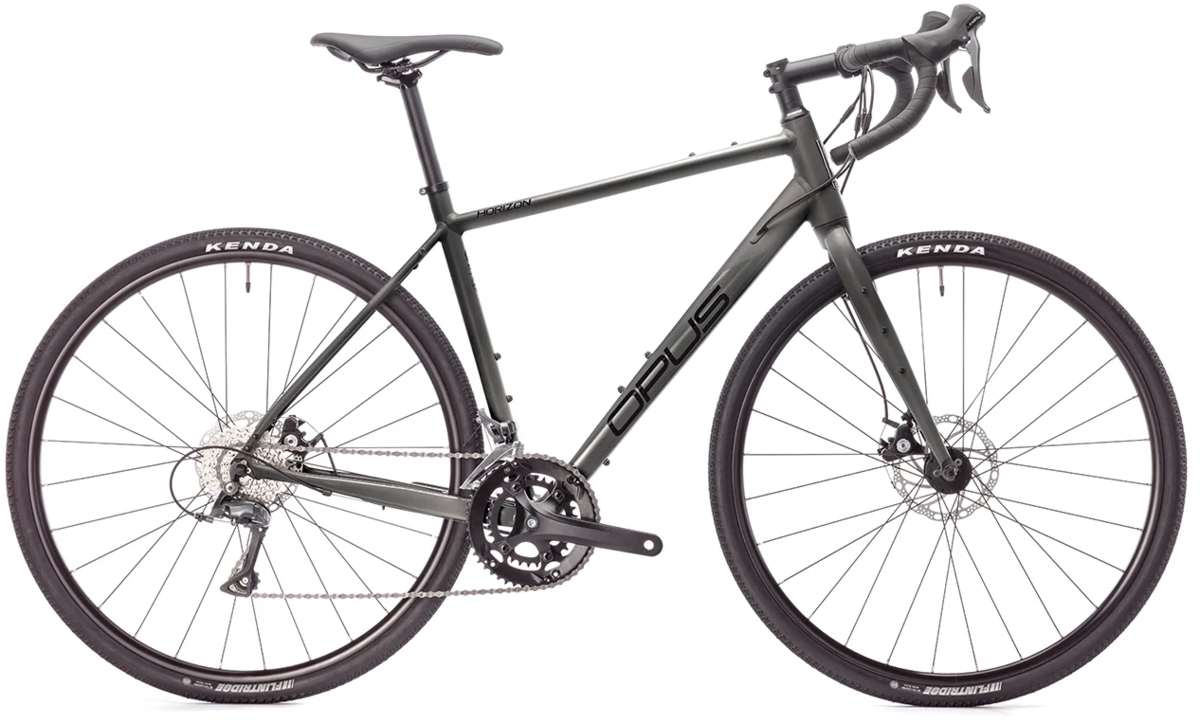

Opus Horizon AL Claris QR
$1,430.00
Details
ANY DISTANCE, ANYWHERE
The Horizon AL Claris QR delivers a level of performance and versatility unmatched at this price. From fast road or city commuting to multi-day bike-packing expeditions, you decide which road to travel. Or maybe no road at all! The Horizon AL Claris QR. Possibly the only bike you'll ever need.
- Proven Horizon Progressive Geometry to master all surfaces
- Rugged steel fork with triple mounts for bottle or bags
- 8-speed Shimano Claris drivetrain with QR wheels
- Big clearance for 700c x 40 tires
- Rear rack and fender mounts, 5 bottle and top tube mounts
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| A. Reach | 372mm | 376mm | 380mm | 384mm | 392mm | 400mm |
| B. Stack | 534mm | 553mm | 572mm | 590mm | 610mm | 630mm |
| C. Standover | 718mm | 743mm | 766mm | 791mm | 818mm | 847mm |
| D. Effective Top Tube | 515mm | 530mm | 544mm | 559mm | 578mm | 599mm |
| E. Head Tube Angle | 69.75° | 70.5° | 71° | 71.5° | 72° | 72.5° |
| F. Head Tube Length | 98mm | 118mm | 138mm | 158mm | 178mm | 198mm |
| G. Seat Tube Angle | 75° | 74.5° | 74° | 73.5° | 73° | 72.5° |
| H. Seat Tube Length | 420mm | 450mm | 480mm | 510mm | 545mm | 580mm |
| J. Bottom Bracket Drop | 80mm | 78mm | 76mm | 74mm | 73mm | 72mm |
| O. Chainstay Length | 425mm | 425mm | 427mm | 427mm | 429mm | 429mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
| Crank Length | 165mm | 170mm | 172mm | 172mm | 172mm | 175mm |
Specs
| Frame | Meta 30 aluminum |
|---|---|
| Fork | Steel tapered 1-1/2 to 1-1/8 in |
| Rims | Weinmann U28 |
| Hubs | Alex Bear Pawls QR fr/rr |
| Tires | Kenda Flintridge Sport 700c x 35 |
| Bottom Bracket | Sealed BSC threaded |
| Crankset | Prowheel RPL-421 |
| Chainrings | 48-32T |
| Shifters | Shimano Claris R2000 2 x 8 |
| Front Derailleur | Shimano Claris R2000 |
| Rear Derailleur | Shimano Claris R2000 |
| Cassette/Freewheel | Shimano 11-32 |
| Chain | KMC Z8.3 |
| Brakes | Tektro MD-310 Flat Mount mechanical disc |
| Brake Levers | Shimano |
| Handlebars | Alloy butted 16° flare |
| Tape/Grips | Velo VexGel diamond grip |
| Stem | Promax |
| Headset | FSA Orbit integrated sealed |
| Seatpost | Promax alloy 27.2 x 300 |
| Saddle | Opus Endurance |
| Pedals | Sold separately |
* Subject to change without notice.
