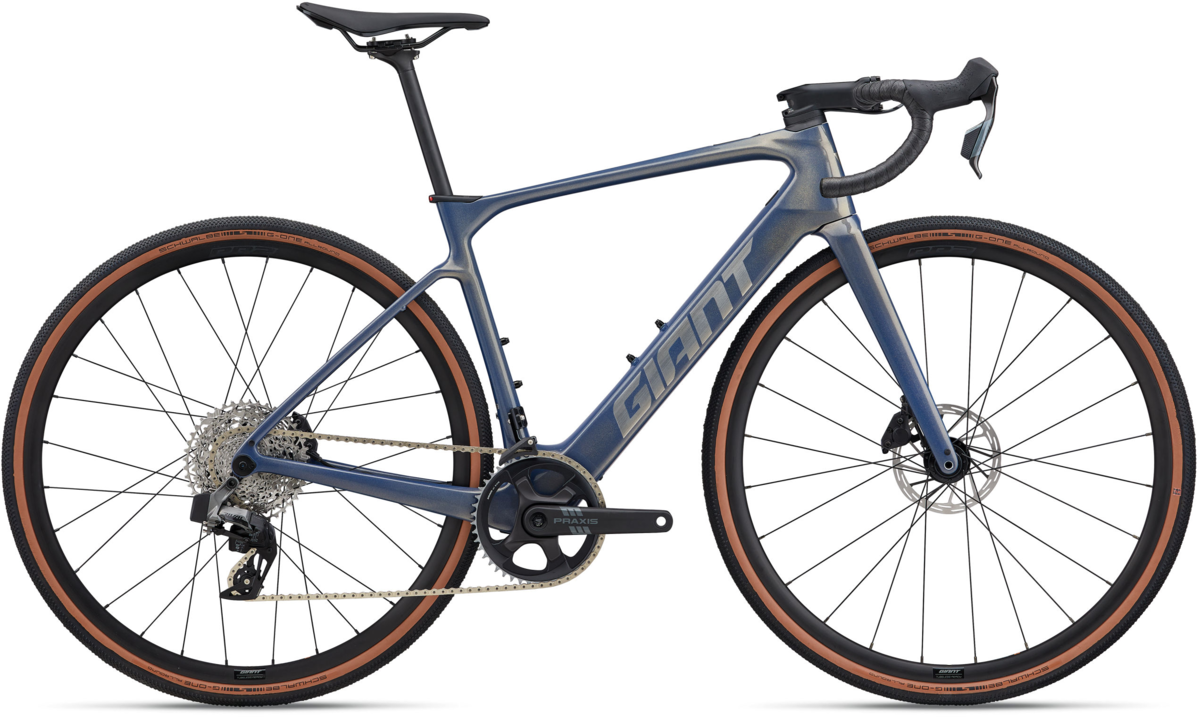

Giant Defy Advanced E+ AR

Giant Defy Advanced E+ AR
$8,299.00
Color: Midnight Moon
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Sorry, this item is currently not available. Please contact us to check availability.

Details

With its smooth-riding composite frame, lightweight battery, new SyncDrive Move Plus integrated rear hub motor and all-road ready 38mm tires, the Defy Advanced E+ AR is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

SEAMLESS POWER
- The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION
- The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube-mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE
- A lightweight composite frameset and high-performance components, including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with all-road ready 35mm tubeless tires, and a wireless electronic drivetrain, all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

bike diagram with measurements referenced in table that follows

Sizes:
SizeSmallMediumMedium/LargeLarge
A Seat Tube Length (mm) 445 480 515 535
B Seat Tube Angle 74.0° 73.5° 73.0° 73.0°
C Top Tube Length (mm) 530 545 560 575
D Head Tube Length (mm) 130 145 167 187
E Head Tube Angle 71.5° 72.5° 72.5° 72.5°
F Fork Rake (mm) 50 50 50 50
H Wheelbase (mm) 994 995 1008 1023
I Chain Stay Length (mm) 420 420 420 420
J Bottom Bracket Drop (mm) 80 80 75 75
K Stack (mm) 542 560 576 595
L Reach (mm) 374 379 384 393
M Stand Over Height (mm) 716 746 779 799
N Handlebar Width (mm) 400 420 420 440
O Stem Length (mm) 90 100 110 110
Q Wheel Size 700C 700C 700C 700C
Sizes:
SizeSmallMediumMedium/LargeLarge
Rider Height (cm) 166–174 cm 172–180 cm 178–186 cm 184–192 cm

Specs

Frame Advanced-grade composite,12x145 thru-axle
Fork Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
Rims Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle
Spokes Sapim spoke E-Light [R] Race [F], e-bike optimized
Tires Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
Bottom Bracket Giant E+ System BBSS
Crankset Sram X-SYNC 46T BCD107 chain ring, Praxis E crank Alloy ISIS
Shifters SRAM Rival AXS
Rear Derailleur SRAM Rival XPLR AXS
Cassette/Freewheel SRAM XPLR XG-1251 10x44T 12-speed
Chain SRAM Rival 12-speed
Brakes SRAM Rival AXS HRD, Paceline 160mm 6-bols [F/R]
Brake Levers SRAM Rival AXS HRD
Handlebars Giant Contact SL D-Fuse 31.8 alloy
Stem Contact SL Aerolight 31.8 alloy
Seatpost Giant D-Fuse, Composite, 14mm offset
Saddle Giant Approach
Pedals Sold Separately
Motor SyncDriveMove Plus Hub drive 75Nm max
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Controller/Display Mode support switch from SRAM Blips + Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
Charger Giant EnergyPak smart charger 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Midnight Moon / Small / 700c 04711291245044 5400009104
Midnight Moon / Medium / 700c 04711291245051 5400009105
Midnight Moon / Medium/Large / 700c 04711291245068 5400009106
Midnight Moon / Large / 700c 04711291245075 5400009107
Midnight Moon / X-Large / 700c 04711291245082 5400009108
